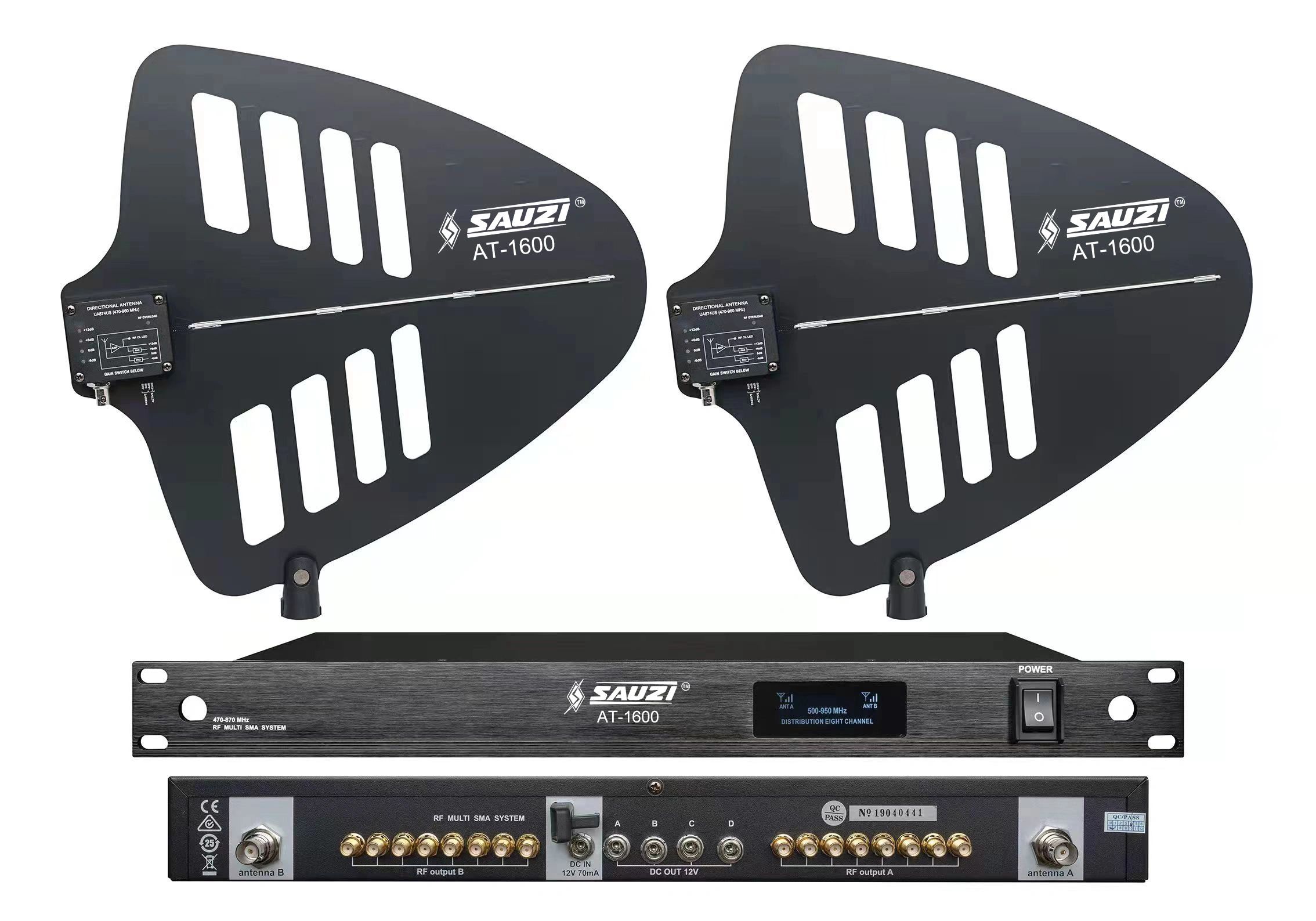

SAUZI Professional AT-1600
About sauzi
AT-1600
About this item
- RF frequency range: 450-950MHZ
- Power requirements: Remote 12V DC from coaxial cable connection to receiver or antenna distribution system, 0.68-0.81W
- Reception pattern: Cardioid: 3 dB beam Width: 100 degrees, Antenna gain: On Axis: 7dB typical
- Gain indicators: 3 dB: Green LED | 10 dB: Red LED, Third order intercept point (30IP): > 30 dBm (at output)
- Connector: Input and output: Female, BNC-type
- Extension Ability: UHF antenna system dedicated to large UHF wireless systems. Each unit can facilitate up to four wireless receivers using the same two antennas. The cascade port can connect to the fifth receiver as a secondary distributor.
- Compatibility: The distributor is compatible with the frequency range of all wireless microphone receivers.
- Cascade Port: Two 16 BNC-type antenna cascade ports can connect one unit of a distributor or a fifth wireless receiver. A large wireless system can operate using a pair of antennas.
- Output Power and Output Connector: Up to five receivers can be daisy-chained, with a single power supply for all, through the output connector.
- Low Noise and Intermodulation Distortion: Maintains a clear signal with minimal distortion.
